Tuote-edut

• Control the light via Smartphone
• Adjustment of all settings via smartphone
• Plug and Play: Basic features usable without App
• Simplified startup thanks to predefined operation modes
• Intuitive manual dimming, switching and changing of colour temperature
• Up to 4 groups separatly controllable
• Adjustable Offset for different groups
• Easy Scene creation via App
• Scene-recall via OSRAM DALI PRO PB coupler possible
• Firmware update over-the-air via Bluetooth possible
• Integrated DALI supply
• Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
• Selected DALI parameters changeable via APP

Käyttökohteet

• Floor-standing luminaires
• Meeting rooms
• Conference rooms
• Training rooms
• Classrooms
• Corridors
• Shop lighting

Tuoteominaisuudet

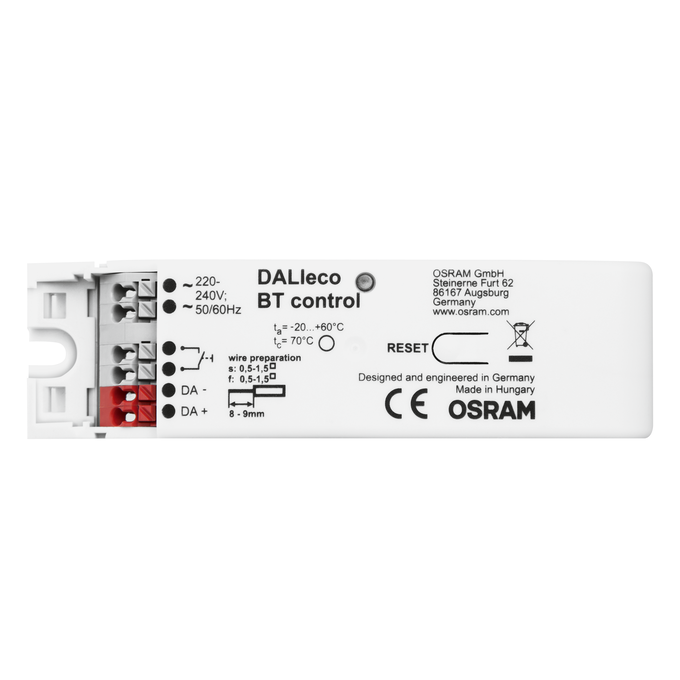

• Compact light control with DALI interface
• Smart phone connection via Bluetooth to control and configure
• One DALI output channel (Broadcast or Groupcast)
• Up to 32 DALI luminaires connectable
• Supports up to 4 OSRAM DALI sensors and pushbutton couplers
• Daylight-dependent regulation and presence-dependent control of light
• Separate pushbutton input to operate via standard pushbutton
• Supports DALI DT8 Tunable White driver
• Outputs with electronical reversible overtemperature, short-circuit, overload protection
• Length of the DALI control cable: up to 300 m
• Length of the pushbutton cable: up to 50 m
• Suitable for luminaire integration

Tekniset varusteet

• Free App for iOS and Android available at the app store
• Ceiling or independent installation via ECO CI KIT possible
