Product benefits

• Modern exclusive design
• Energy savings of up to 60 % compared to conventional high bay luminaires
• Optimized weight and size due to compact design
• 5 years guarantee

Areas of application

• Replacement for high bay luminaires with mercury vapor or metal halide lamps
• Warehouses
• Logistics halls
• Industry
• High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)

Product features

• High luminous efficacy: up to 165 lm/W
• Black aluminum housing, tempered opal glass cover
• Multi Lumen: lumen steps selectable
• Multi Color function: 4000 K, 5000 K and 6500 K
• Very long lifetime (L70): up to 100,000 h (at 25 °C)
• Operating temperature: -20…50 °C
• High color consistency: ≤ 5 sdcm
• Type of protection: IP65

Equipment / Accessories

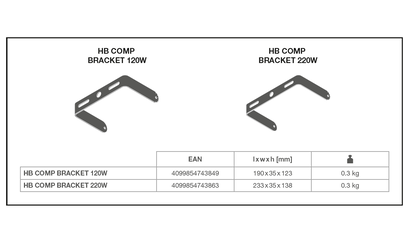

• Bracket available
• Reflector available

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
• Terminal block not included. Installation must be made by a qualified person.
• To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
